ACP-1500

ACP-1500 Auto projector

·ACP-1500 Auto projector adopts new optical bench and helical focusing, more convenient to operate and image sharpness more clear and easier to adjust
·Changed to electric control, chart switch speed is improved to 30% faster than ACP-1000, with locating faster, more precise and less dithering
·Upgraded optical bench, solving the problem of fogging and dust gathering under long-hour working
·New design for ACP-1500, modern and fashinable

Projection distance 1.5m-6m
Projection magnification 30X (at 5m)
Projection size 330mm(w) x270mm(h) (at 5m)
Chart switch speed 0.03s per chart
Program 2 sets of programs, each contains 30 steps most
Self-protection automatically power off if no operations within10min
Voltage AC220V, 50Hz or 110V, 60Hz
Rated power 80W
Size 300mm x230mm x240mm
Net weight 6.0KG

LLASY60 HYDROPHILE

Brand name AS-IOL
Reference LLASY60
Description Aspherical acrylic intraocular lens. One piece design. Posterior chamber.
Design Square edge (360º)
Material Hydrophilic acrylic, with UV filter and natural blue light filter.
Optical diameter 6.0 mm
Total length 10.75 mm
Angle
Diopters range -5 D to +40 D in steps of 1 D / +12 D to +25 D in steps of 0.5 D
Water content 25%
Constant A / ACD A Constant (optical): 118
A Constant (U/S): 117.3
ACD: 4.56
Sterilization
method
Steam.
Supply Sterile, single unit
Shelf-life 3 years

*Product with CE marking

MORE INFORMATION

Aiala-dry-BANNER-ophtalmologie-freedom-medical
AIALA DRY HYDROPHOBE PRÉCHARGÉE

Reference LLASHP60 / LLASHP60-PL
Brand name AIALA DRY / AIALA DRY PRELOADED
Description Aspherical hydrophobic intraocular lens. One piece design. Posterior chamber.
Desing C-LOOP, antistick haptics. Square Edge (360º)
Material Hydrophobic acrylic, GF, with filter for UV and filter for blue light.
Optical diameter 6.0 mm
Total length 13.00 mm
Angle
Diopters range -5 D to +40 D in steps of 1 D / +10 D to +28 D in steps of 0.5 D
Water content <4%
Constant A / ACD Constant A (optical): 119.7
Constant A (U/S): 119.2
ACD: 5.66
Sterilization
method
Ethylene Oxide (ETO).
Supply Single unit, sterile.
Shelf-life 3 years

*Product with CE marking

jeringa_aiala_dry-ophtalmologie-freedom-medicale

* Pre-loaded intraocular
lens injector
Ref.: LLASHP60-PL

MORE INFORMATION

77fx-product-frastema-equipement-ophtalmologies-tunisia-freedom-medica
77 FY
Approximate net weight kg 150 (330 lbs)
Maximum Patient weight kg 300 (660lbs)
Tension 220-240V (110)
Frequency 50-60Hz
Power 660VA
Battery Voltage 24Vdc
Rechargeable system built in Yes
Battery level display Yes
Battery working cycle approx 1 week (under standard working conditions)
Mode operation for the actuators 2′ work under load / 18′ rest
Maximum Patient height 1000 mm
Minimum Patient height 680 mm
Column stroke 320 mm
Backrest tilt angle 0° (flat) / 82°
Legrest tilt angle 0° (flat) / 62°
Trendelenburg angle -18°/-10° (total tilt angle 28°)
Seat width 600 mm
Wheels 3 positions commanded by foot pedal (brake/steer/neutral)
Hand control Full control of the actuators
Headrest 3 movements usefull for a complete possibility of regulations
Optionals Armrest, Oxygen pipe
Schermata-2017-09-15-alle-88FX-frastema-table-chirurgicales-tunisia-freedom
88FX
Approximate net weight kg 45 (99,21 lbs)
Maximum Patient weight kg 150 (330,69 lbs)
Tension 24V
Frequency 50-60Hz
Power 2000 N
Width 600 mm
Depth 535 mm
Maximum height 1155 mm
RiEye-Mk2S-R6-1920-freedom-medical-ORL
rini
77fx-77fy-frastema-freedom-medical-équipement-ophtalmologies
Frastema
Oculfit-2-Oculoplasty-freedom-medical-ORL-tunisia-freedom
BILLES OCULFIT

Oculfit_EN-OCULOPLASTY-implant-ophtalmologies-produits
Brand name OCULFIT ORBITAL IMPLANT
Reference 6316-             6326-            6327-           8702-         6317-           8703-           6322-       8704-

POI                   POI               POI            POI               POI            POI               POI        POI

Sphere diameter 14 mm         16 mm          18 mm       19 mm            20 mm      21 mm         22 mm      23  mm
Description and Indications OCULFIT orbital implants are spherical implants designed to be implanted after an enucleation or evisceration of the eyeball.
Manufactured using hight desity porous plyethylene, (HDPE) a material tested with excellent biocompatibility results.
OCULFIT orbital implants have a smooth surface, which reduces the possibility of extruding the implant, four suture holes, to secure the device with ease, and a densely porous posterior surface, that facilitates integration and minimizes the risk of long-term exposure.
Material Hight density porous polyethylene.
Sterilization method Ethylene Oxide (ETO).
Supply Sterile, single container. The devices are accompanied by an insertion accessory that facilitates their
implantation, avoiding the adhesion of the tissues in its path.
Shelf-life 5 years
Brand name ORBITAL VOLUMEN SIZER SET
Reference AMB-A1-SET
Sizes 14 mm, 16 mm, 18 mm, 20 mm, 22 mm

PLUS D’INFORMATIONS

Il est recommandé de placer le conformateur perforé immédiatement après l’intervention chirurgicale.

Technical sheet-conformador-perforado-tunisia-freedom-medical

Implantes-paperables-ALOS Eyelid Implants-oculoplasty-freedom-medical

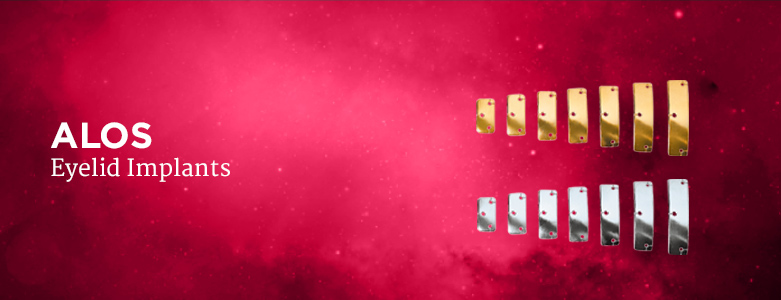

ALOS Eyelid Implants

Implantes-paperables-aios-eyelid-implants-ophtalmologies-freedom-medical
Brand name ALOS
Models GOLD (TH-G) and PLATINUM (PTH-P)
Description and indications • Biocompatible materials.
• Due to their fine, spherical design, the implants adapt to the curvature of the eyeball, to achieve
a better aesthetic result.
• Rounded edges to avoid the extrusion of the implant in the long-term.
• Suture holes with fixation channels.
• Purity of 99.9% (Platinum) and 99,9% (Gold).
• 7 standard sizes.
• Sterile.

Indication: Eyelid implants are designed for the correction of lagophthalmos.

GOLD
Reference

TH    TH    TH      TH      TH    TH    TH

06     08     10      12       14    16    18

Weight (g) 0.6    0.8    1.0    1.2    1.4    1.6    1.8
Length (mm)
10.5  12.5  15.5  17.5  19.5  21.5  24.5
Width (mm) 5.7    5.7     5.7     5.7    5.7     5.7     5.7
Thickness (mm) 0.6   0.6     0.6      0.6    0.6     0.6     0.6
Sterilization method Steam.
Shelf-life 3 years
PLATINUM
Reference

PTH    PTH    PTH   PTH   PTH   PTH   PTH

06        08        10     12     14      16     18

Weight (g) 0.6        0.8       1.0      1.2       1.4      1.6       1.8
Length (mm) 10.2     12.4     15.0    17.0    18.8     21.0     24.0
Width (mm) 5.7         5.7       5.7       5.7       5.7       5.7       5.7
Thickness (mm) 0.6       0.6       0.6        0.6        0.6        0.6        0.6
Sterilization method Steam.
Shelf-life 3 years

* Product with CE making

medidor-de-pesas-alos-AJL-ophtalmologies-produits-tunisia-freedom
Brand name ALOS SIZER SET
Reference SET-MEDIDOR-TH
Sizer 0.6 g, 0.8 g, 1.0 g, 1.2g, 1.4 g,1.6 g.

MORE INFORMATION

protector-ocular-Eye Shield-oculoplasty-freedom-medical
Eye Shield

Protector-ocular-eye-shied-freedom-medical-ORL
Brand name AJL OCULAR SHIELD
Reference PROCUL-S-AJL    PROCUL-M-AJL      PROCUL-L-AJL
Size Small:22 x 19 x 1.7 mm         Medium:24 x 21 x 1.7 mm      Large:25 x 22 x 1.7 mm
Description and indications

AJL OCULAR SHIELD is a medical device specially designed to protect the eyeball.

It is designed to protect the eyeball during eyelid surgery

Material High resistance acrylic material suitable for ocular use.
Sterilization method Ethylene oxide (ETO).
Supply Sterile, single container. Device which includes a bulb syringe that facilitates
the positioning and extraction of the ocular protector.
Shelf-life 4.5 years

*Product with CE marking
