OptoSLT M

OptoSLT M

ADVANTAGES:

  • laser light stimulates the body’s own healing response to lower eye pressure
  • effective as primary, adjunctive or repeat therapy
  • safe, office-based procedure
  • reimbursed by most insurance policies

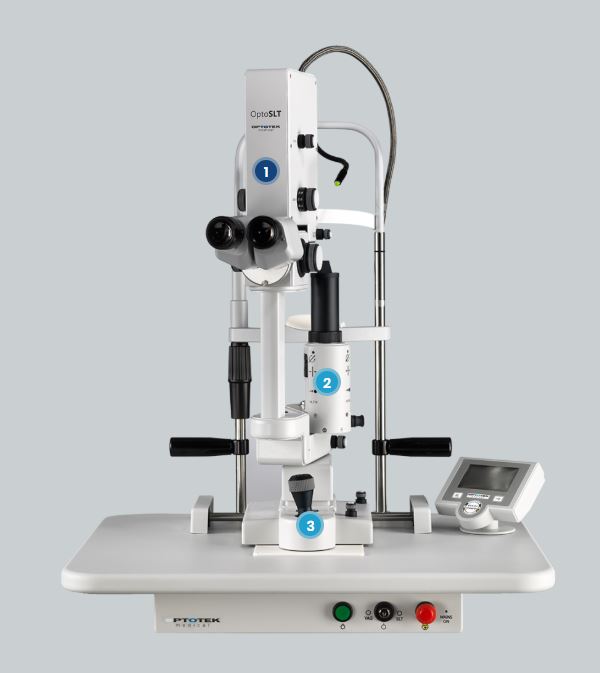

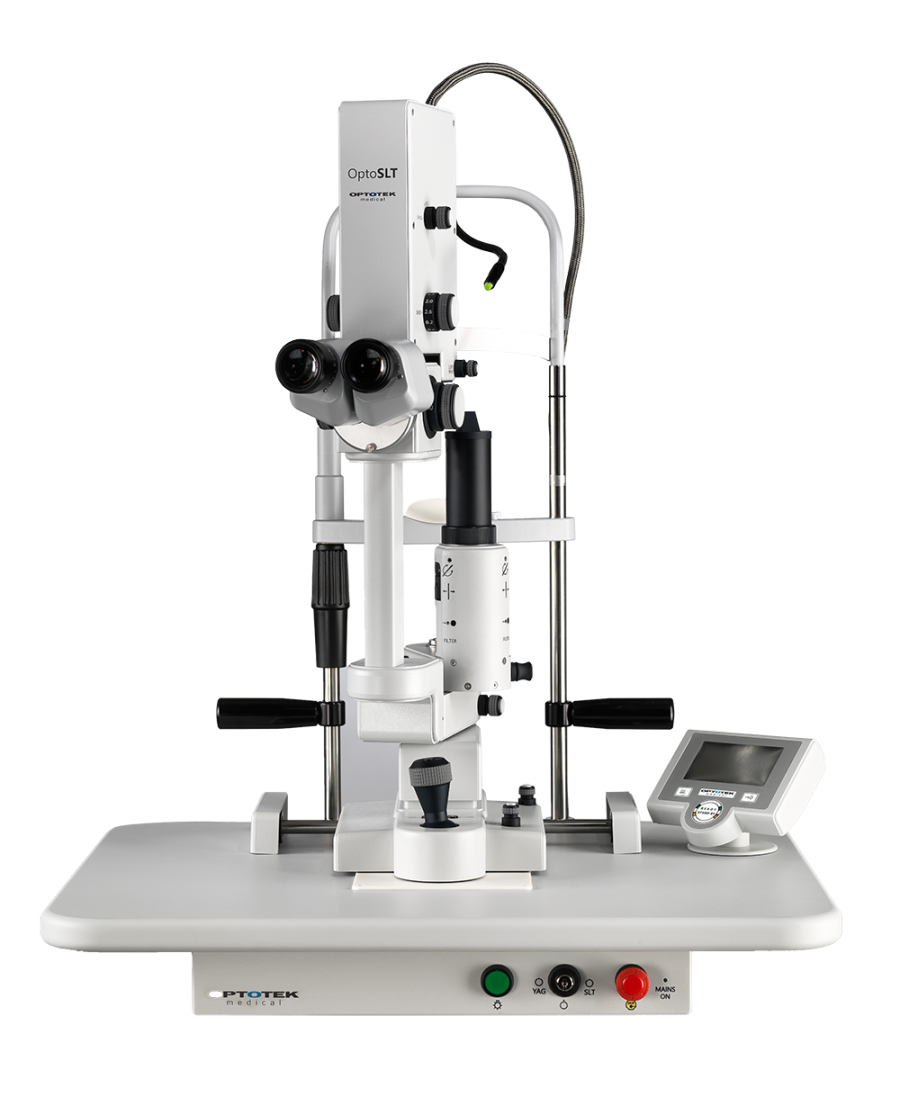

OptoSLT is a laser for Selective Laser Trabeculoplasty. This is a laser procedure used to treat open angle glaucoma by reducing the pressure within the eye. The laser system is a Q-switched frequency doubled Nd:YAG laser emitting short pulses at the wavelength of 532 nm. OptoSLT emits pulses at levels from 0.2 to 2.6 mJ. Red laser diode aiming beam with continuous power adjustment allows precise targeting of the SLT laser. OptoSLT can be integrated into the e-SlitLight or adapted to various slit lamps.
Clinical references:
Other references:





Key features

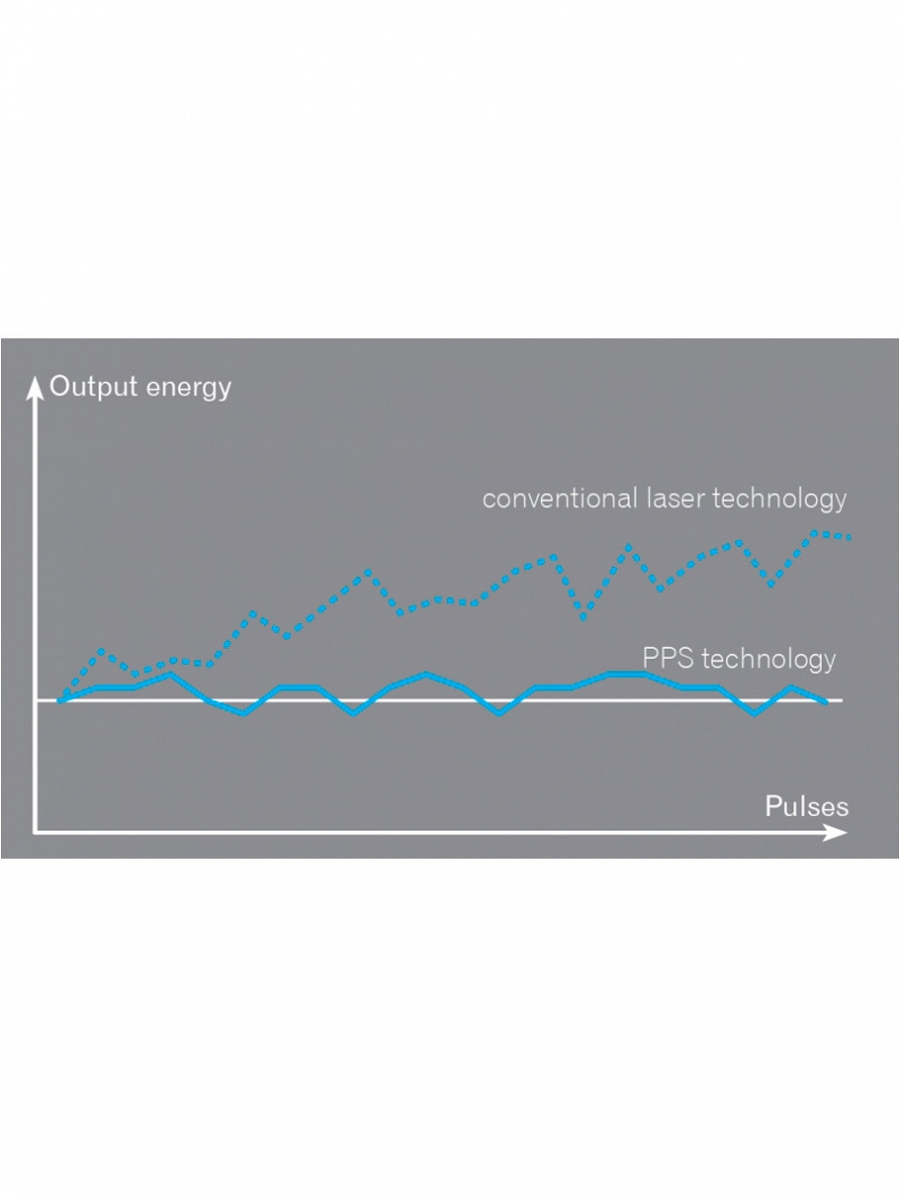

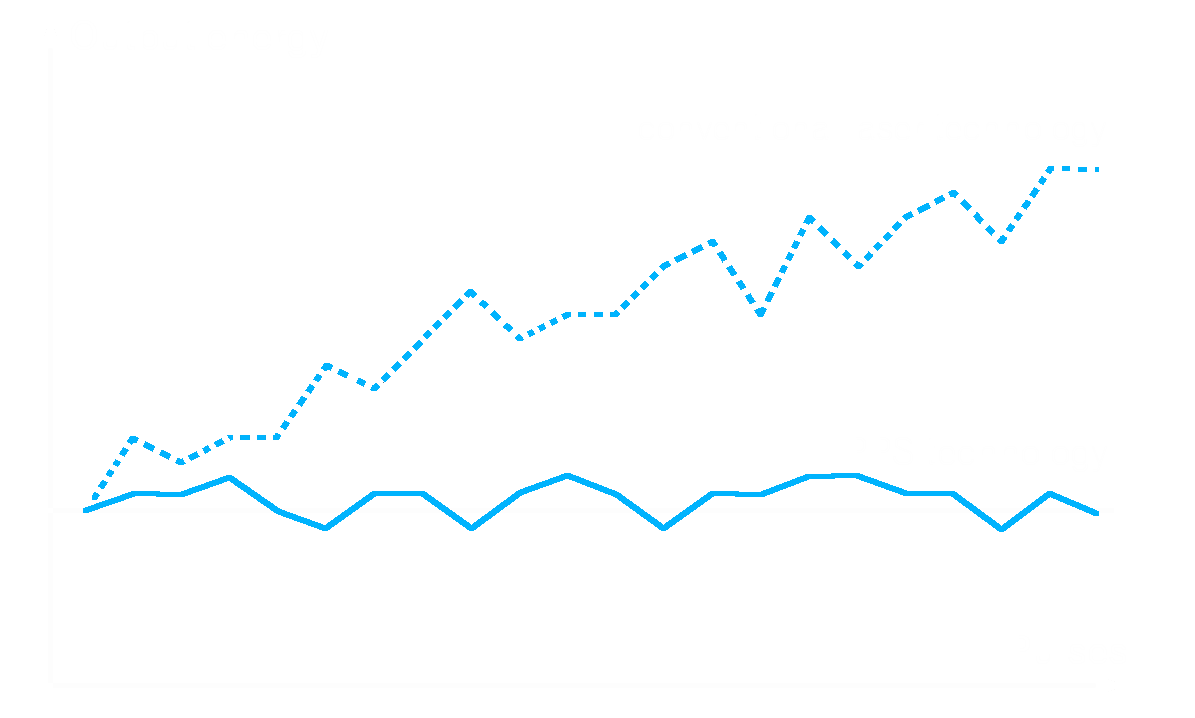

PPS™ – PULSE TO PULSE STABILITY

Optotek has spent extra time and effort to ensure highest reliability and safety of the system. The OptoSLT M incorporates a PPS™ technology for delivering stable output energy far exceeding current industry standards. Enhanced accuracy and stability of energy provide the highest degree of safety and assure effective and efficient eye treatments.

[fusion_faq filters= »no » featured_image= » » cats_slug= »optoslt-m » exclude_cats= » » orderby= »date » order= »DESC » type= » » boxed_mode= » » border_size= » » border_color= » » background_color= » » hover_color= » » divider_line= » » title_font_size= » » icon_size= » » icon_color= » » icon_boxed_mode= » » icon_box_color= » » icon_alignment= » » toggle_hover_accent_color= » » hide_on_mobile= »small-visibility,medium-visibility,large-visibility » class= » » id= » » /]

Technical specifications

Laser Source   Q switched, frequency doubled Nd:YAG
Wavelength   532 nm
Energy   0,2 to 2,6 mJ per pulse in 33 steps
Spot Size   400 μm
Cone Angle   < 3°
Pulse Rate   Up to 3 Hz
Burst Mode   Single pulse
Pulse Duration   4 ns (typical)
Aiming Beam    Red diode; 650 nm; continuously adjustable intensity(635, 670 nm optionally)
Laser Trigger     Joystick (footswitch optionally)
Cooling System     Air convection
Type        e-SlitLight™
Illumination Source       White LED
Magnification       10x, 16x, 25x (6x, 10x, 16x, 25x, 40x optionally)
Type               Central mounted
Dimensions               600 x 480 mm
SLT Laser Head Dimensions                    240 x 150 x 60 mm
Total System Height                    695 – 730 mm
Total Net Weight         21 kg
Power Supply            100 – 240 V, 50 – 60 Hz, 1,1 A MAX
Optional Accessories                            Motorized lifting mechanism, Footswitch, Elbow support,,Beam splitter with co-observation tube, Warning light,,Magnification changer (5x)
