OptoYag&SLT M
YAG LASER ADVANTAGES
- short treatment times
- reduced risk of IOL pitting
- greater patient comfort
SLT LASER ADVANTAGES
- laser light stimulates the body’s own healing response to lower eye pressure
- effective as primary, adjunctive or repeat therapy
- safe, office-based procedure
- reimbursed by most insurance policies

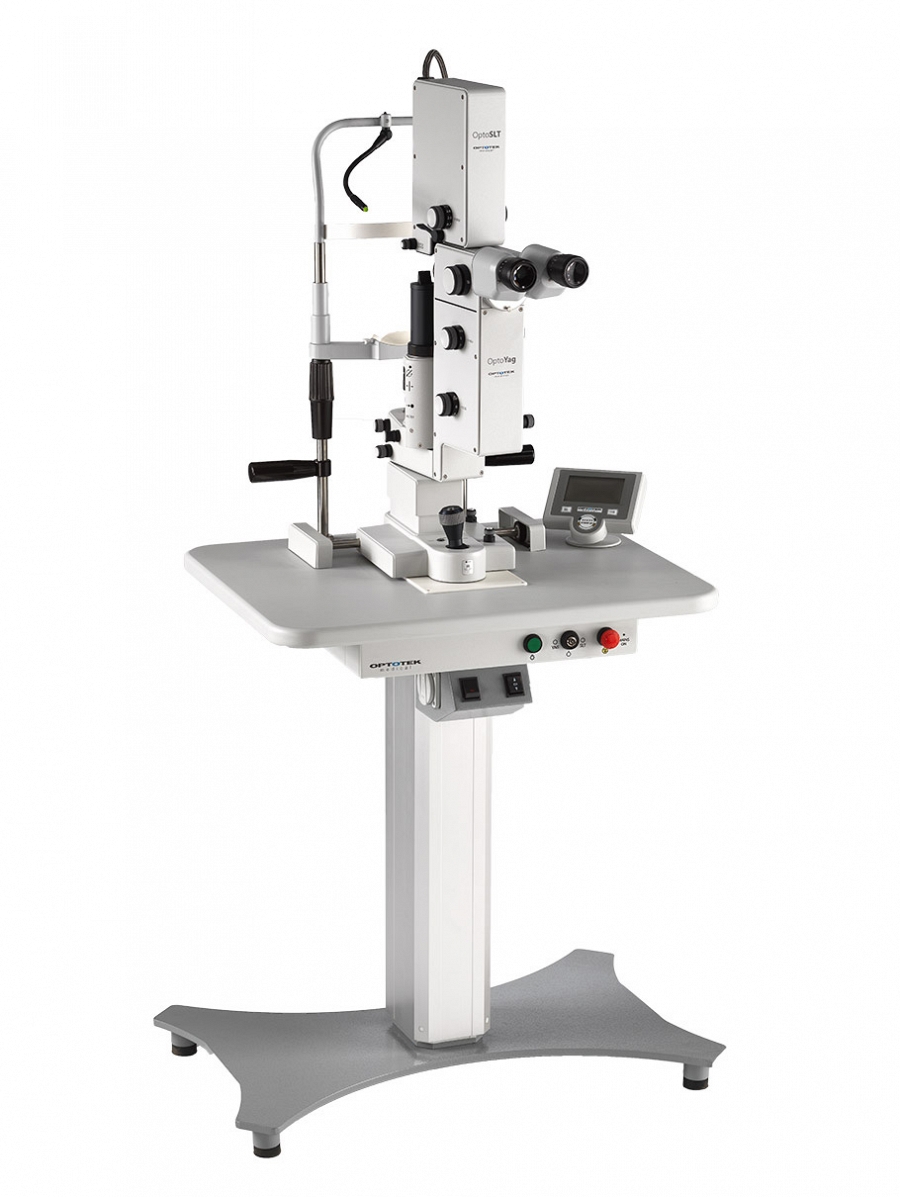

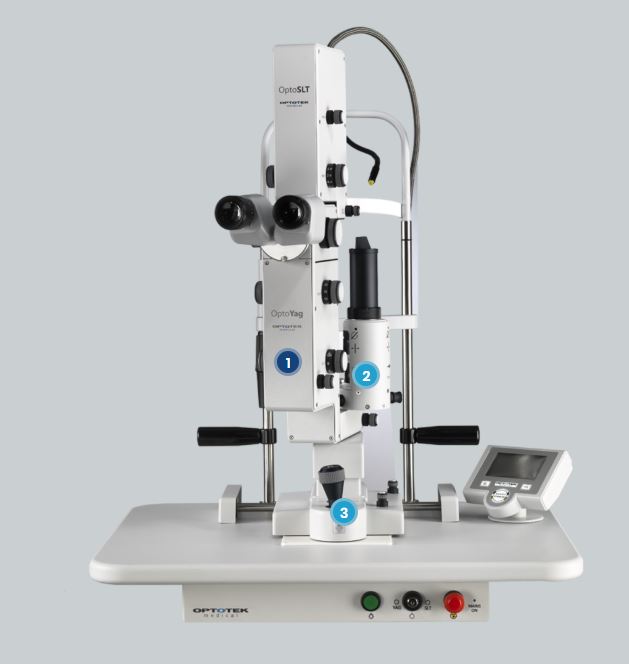

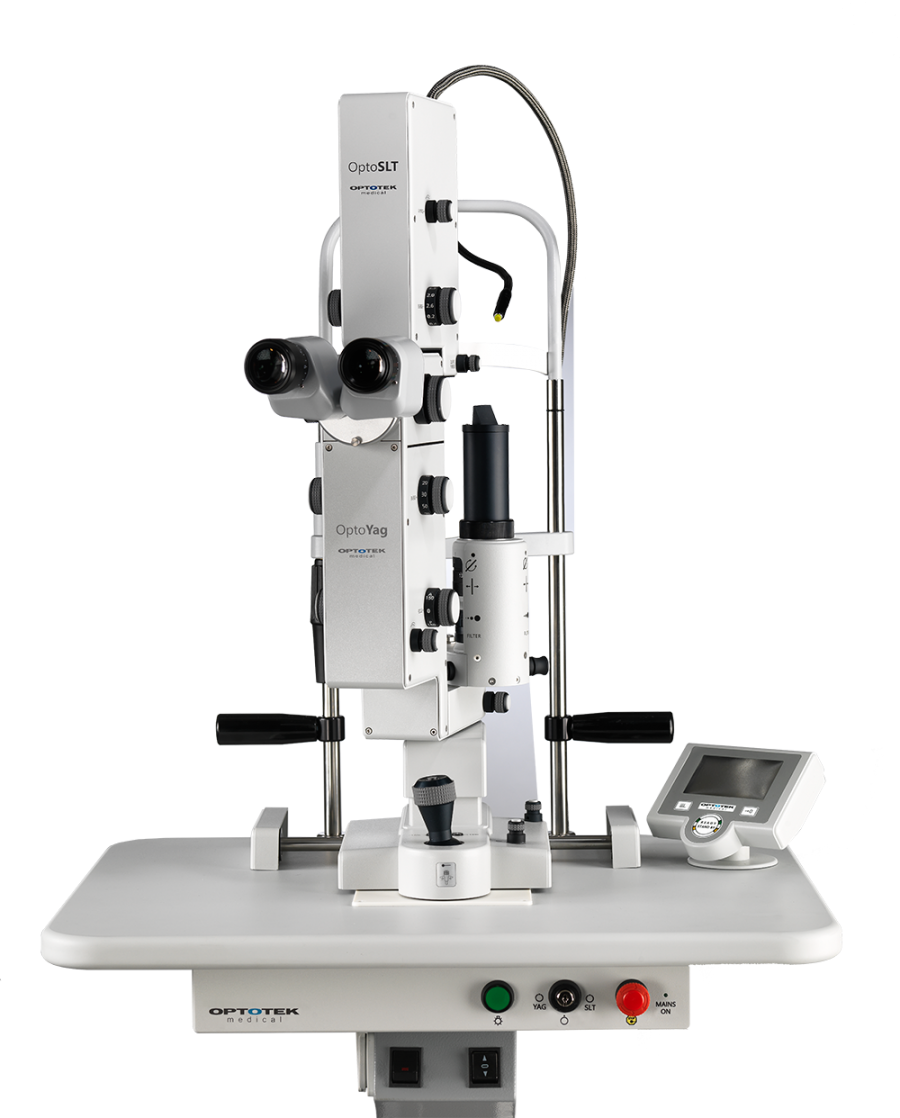

OPTOYAG&SLT IS A COMBINED UNIT WHICH INCLUDES:
- Q-switched Nd:YAG laser (1064 nm)
- frequency doubled Q-switched Nd:YAG laser (532 nm)
-
Both lasers are integrated into the e-SlitLight. OptoYag&SLT is a photodisruptor and SLT laser combined into a single piece of equipment. It can be used for Capsulotomy, Iridotomy and Selective Laser Trabeculoplasty treatments.
Clinical references:
Other References:
Achieving capsulotomy, iridotomy with novel Nd:YAG laser system
Key features

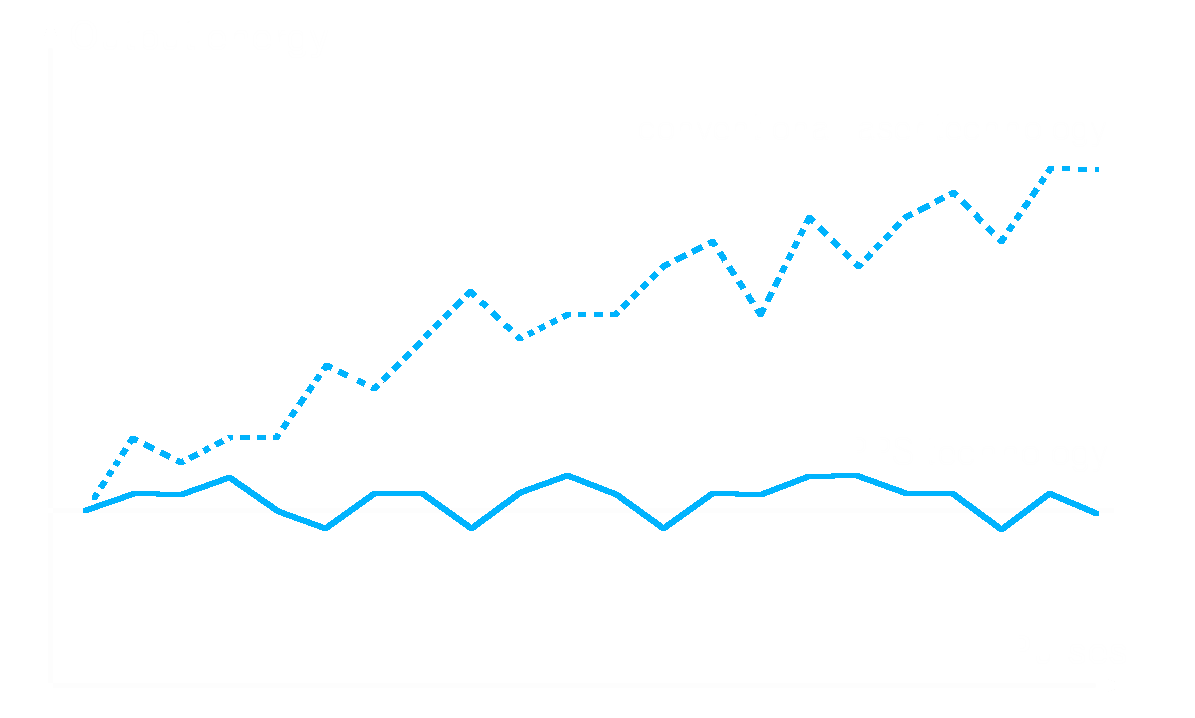

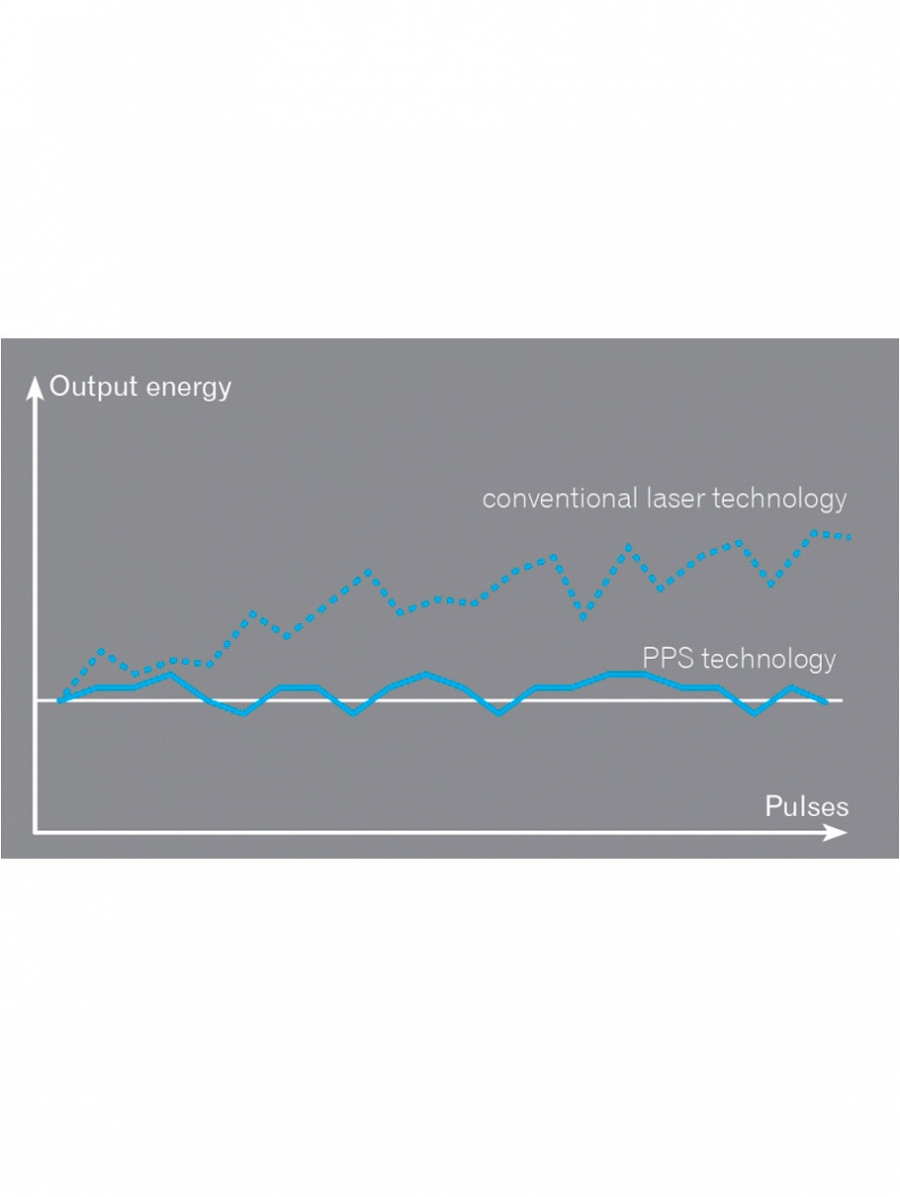

PPS™ – PULSE TO PULSE STABILITY
Optotek has spent extra time and effort to ensure highest reliability and safety of the system. The OptoYag&SLT M incorporates a PPS™ technology for delivering stable output energy far exceeding current industry standards. Enhanced accuracy and stability of energy provide the highest degree of safety and assure effective and efficient eye treatments.
Technical specifications
YAG Mode
Laser Source | Q-switched Nd:YAG |
Wavelength | 1064 nm |
Energy | 0,5 to 10 mJ per pulse in 30 steps |
Spot Size | < 10 μm |
Cone Angle | 16° |
Offset | Selectable: 150μm anterior;,0; 150, 300 μm posterior |
Pulse Rate | Up to 3 Hz |
Burst Mode | 1, 2 and 3 pulses |
Pulse Duration | 4 ns (typical) |
Aiming Beam | Red dual diode; 650 nm;,continuously adjustable intensity(635, 670 nm optionally) |
Laser Trigger | Joystick (footswitch optionally) |
Cooling System | Air convection |
SLT Mode
Laser Source | Q switched, frequency doubled Nd:YAG |
Wavelength | 532 nm |
Energy | 0,2 to 2,6 mJ per pulse in 33 steps |
Spot Size | 400 μm |
Cone Angle | < 3° |
Offset | Not applicable |
Pulse Rate | Up to 3 Hz |
Burst Mode | Single pulse |
Pulse Duration | 4 ns (typical) |
Aiming Beam | Red diode; 650 nm; continuously,adjustable intensity(635, 670 nm optionally) |
Laser Trigger | Joystick (footswitch optionally) |
Cooling System | Air convection |

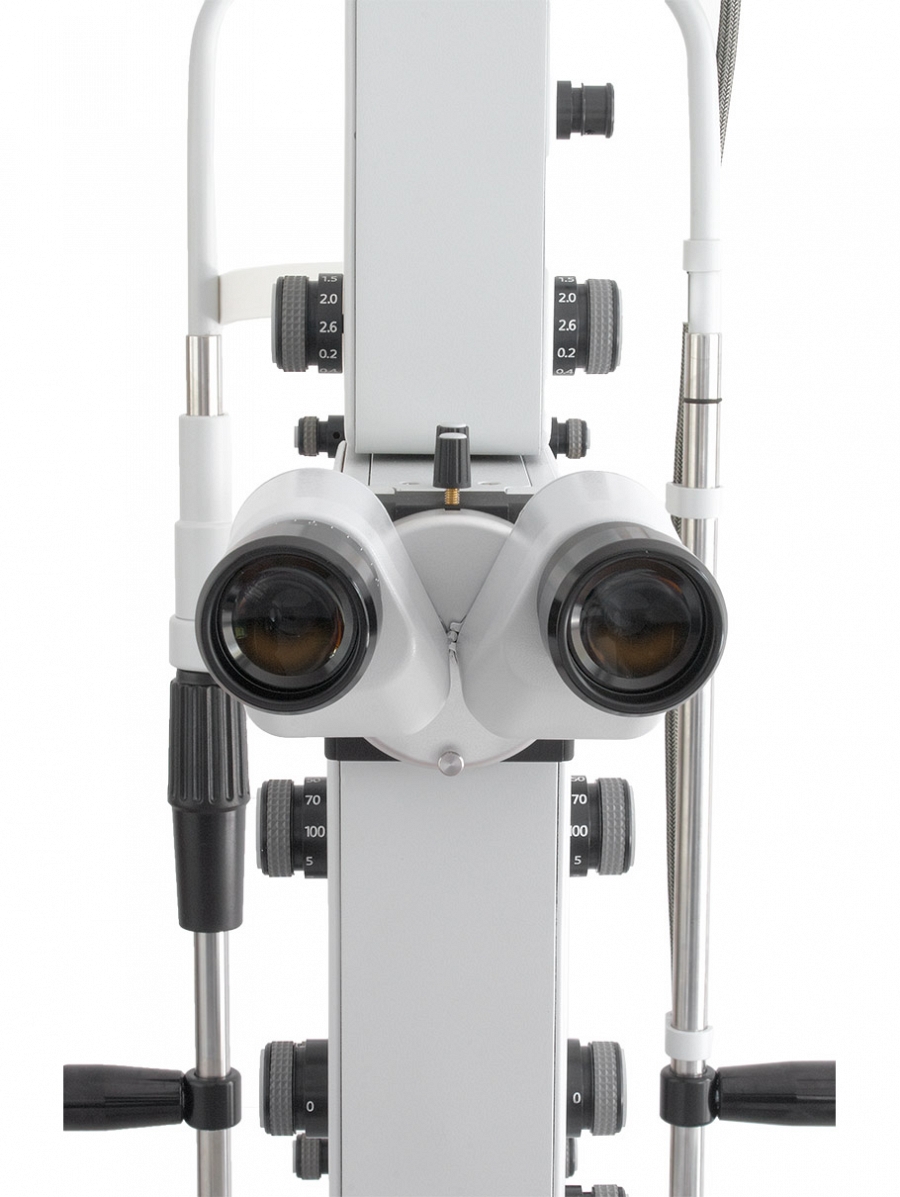

Type | e-SlitLight™ |
Illumination Source | White LED |
Magnification | 10x, 16x, 25x (6x, 10x, 16x, 25x, 40x optionally) |
Type | Central mounted |
Dimensions | 600 x 480 mm |
YAG Laser Dimensions | 125 x 257 x 68 mm |
SLT Laser Dimensions | 240 x 150 x 60 mm |
Total System Height | 695 – 730 mm |
Total Net Weight | 23 kg |
Power Supply | 100 – 240 V, 50 – 60 Hz, 1,1 A MAX |
Optional Accessories | Motorized lifting mechanism, Footswitch, Elbow support, Beam splitter with co-observation tube, Warning light, Magnification changer (5x) |
