csm_F4H5_Fluoron_Hintergrund-ophtalmologies-freedom-medical-sousse

Juin 17 2020

WASHOUT SOLUTIONS

SEMIFLUORINATED ALKANES

csm_Packshot-F4H5-vial-RGB_retines-ophtalmologies-freedom-medicale

F4H5 WASHOUT

The simply solution for oil residues in vitreoretinal surgery

Unique amphiphilic properties
Solves silicone oil efficiently
Removes silicone oil residues and « sticky oil »
Rinses silicone oil-polluted IOL
Biocompatible

csm_Packshot-F6H8-vial-RGB_retines-freedom-medicale

F6H8 VITREOUS SUBSTITUTE

The rinsing tamponade in vitreoretinal surgery

Temporary endotamponade in cases of complicated, especially inferior retinal detachments
”Third hand“ when relocating the macula
Retinal unfolding with low contact pressure
Rinses IOLs after silicone oil tamponades

fred 0 Commentaires

csm_Langzeittamponaden_gesamt-ophtalmologies-produits-freedom-medicale

Juin 17 2020

LES TAMPONNEMENTS A LONG TERME

Ultrapure silicone oils and gases for the best possible compatibility with operated eyes

DENSIRON XTRA

The heavy silicone oil with molecular design

Unique moleculary design
Heavier than water
Ideal for inferior pathologies
Removing proliferative milieu in lower part of retina
Avoiding unpleasant constraints for patient (« head-down-position »)
Easy to inject
25G compatible
Highly resistant against emulsification (Caramoy A., Schröder S., Fauser S., Kirchhof B. (2010) In vitro emulsification assessment of new silicone oils. Br J Ophthalmol 94, 509-512)

DENSIRON 68

« Heavier-than-water » endotamponade with exceptional features

Increased density of 1.06 g/cm³ for efficient tamponade of the lower retina
Pure physical mix of two intensively researched and CE certified liquid implants (F6H8^® and Siluron^® 5000)
Medium viscosity of 1400 mPas
Easy application and removal of the endotamponade
High storage stability even at low temperatures (no Phase Separation down to 2°C)
Reliable and succesul in clinical applications since more than 10 years

Flyer Densiron 68

SILURON XTRA

A new generation of silicone oils with an innovative molecular design

High resistance to emulsification
Short injection time
Good long-term tolerability
Excellent chemical purity

SILURON 1000

A new generation of silicone oils with an innovative molecular design

Good long-term tolerability
Excellent chemical purity
Chemically and physiologically inert

SILURON 2000

A new generation of silicone oils with an innovative molecular design

High resistance to emulsification
Short injection time
Good long-term tolerability
Excellent chemical purity

SILURON 5000

A new generation of silicone oils with an innovative molecular design

Good long-term tolerability
Excellent chemical purity
Chemically and physiologically inert

Bild_Presse_retines-ophtalmologies-freedom-medical

GASES

The first ready-to-use gas tamponade

Quick and easy application through sterile pre-filled system
Safe useage because of precise, non-expanding mixture ratio in each syringe
No mix-up of gases due to colour coding
Three gases for different tamponade durations
Reduced risk for hypertension or ischemia, because manual mixing is not required
No subsequent surgery for tamponade removal necessary
Contains patient information card and patient wristband

fred 0 Commentaires

csm_Perfluorcarbone_gesamt_INTRAOPERATIVE TAMPONADES-freedom-medicale

Juin 17 2020

DKLINE

Perfluorocarbons for intra-operative use

F-OCTANE

Ultrapure perfluorcarbones for intraoperative tamponades

Gentle retinal unfolding and stabilization
Drainage of subretinal fluids
Refloating luxated lenses
Short-term tamponade
Outstanding stability and biocompatibility
Ready-to-use syringes

F-DECALIN

Ultrapure perfluorcarbones for intraoperative tamponades

Gentle retinal unfolding and stabilization
Drainage of subretinal fluids
Refloating luxated lenses
Short-term tamponade
Outstanding stability and biocompatibility
Ready-to-use syringes

fred 0 Commentaires

csm_Farbstoffe-retines-ophtalmologies-freedom-medicale

Juin 17 2020

BRILLIANT PEEL DUAL DYE

The non-toxic dual dye

Intense and selective staining of ILM, ERM and vitreous remnants
Fast sinking – maximized contact surface with tissue due to higher density
Safe application under air and BSS
Quick and easy application (Ready-to-use)
Physiological osmolarity
Biocompatible

BRILLIANT PEEL

Heavy Dye for selective staining of the ILM

Precise and intense staining of the ILM due to fast sinking dye
Safe application under air and BSS
Quick and easy application (Ready-to-use)
Physiological osmolarity
Biocompatible

VIORON

The versatile trypan blue dye for the anterior segment

Brilliant visualization of the anterior lens capsule
Excellent distinction of the capsulorhexis margin
Quick and easy application (Ready-to-use)
Approved for DMEK

fred 0 Commentaires

esnoper-clip-glaucome-Sclerectomy-Implant-ophtalmologies- Esnoper clip

Juin 17 2020

Sclerectomy Implant Esnoper clip

Esnoper_clip-glaucome-ophtalmologies-tunisia-freedom-medical

Brand name	ESNOPER CLIP
Reference	VCLIP-AJL
Description and indication	The ESNOPER CLIP uveoscleral implant is a non-absorbable implant whose double-plate design provides two drainage channels: Trabecular (intraescleral and supraciliary) and uveoscleral that facilitates the drainage of aqueous humor. The ESNOPER CLIP uveoscleral implant is indicated for non-penetrating deep sclerectomy (NPDS) in open-angle glaucoma surgery. For implantation, the notched plate must be inserted in the suprachoroidal space and the upper plate is positioned on the scleral bed. The lateral notches are design for the implant to be secured perfectly, this preventing movement, without the need for sutures.
Dimensions	5.50mm X 1.30mm X 2.20mm.
Orifices	3 (drainage).
Material	Hydroxyethyl Methacrylate (HEMA).
Sterilisation method	Steam.
Package	The ESNOPER CLIP implant is supplied single and sterile in a vial, housed by a clamp support that is immersed in high purified water to maintain it properly hydrated.
Shelf-life	3 years
*Product with CE marking

EPNP surgical equipment

Definition

NPDS Kit (non-penetrating deep sclerectomy) Kit.

Description

The NPDS Kit is presented non sterile in a rigid plastic blister with the following items(*): references are grouped(*):

•EPNP-2001Liebermann Blepharo 14mm. • EPNP-2004Mermoud Clamp.
•EPNP-2002Double Scleral Marker. • EPNP-2005Curved micro-scissor.
•EPNP-2003Mermoud Spatula. • PST-4600ASterilisation box (10x16x2 cm).

* The instruments can be supplied as a set (NPDS Kit) or separately

Technical sheet

SURGICAL PROCEDURE

Clinical publications

fred 0 Commentaires

Snoper-V2000-Sclerectomy-Implant-ophtalmologies-tunisia-freeedom Esnoper-glaucome

Juin 17 2020

Sclerectomy Implant Esnoper

MORE INFORMATION

Technical sheet

GENERAL SURGICAL PROCEDURE

Clinical publications

Technical sheet-ophtalmologies-tunisia-freedom-medical

Reference	V2000
Description & indication	The ESNOPER V2000 scleral implant is a non-absorbale implant that provides a fixed, permanent intrascleral space that facilitates the drainage of aqueous humor. It is indicated for non-penetrating deep sclerectomy (NPDS) in open-angle glaucoma surgery. The ESNOPER is placed on the scleral bed. This method favors the trabecular way, which is the classic drainage way of the aqueous humor
Dimensions	3.00mm X 1.40mm X 2.85mm.
Orifices	2 (suture/drainage).
Longitudinal orifice	Drainage.
Material	Hydroxyethyl Methacrylate (HEMA).
Sterilisation method	Steam.
Supply	The ESNOPER V2000 implant is supplied single and sterile in a vial, housed by a clamp support that is immersed in high purified water to maintain it properly hydrated
Shelf-life	3 years

*Product with CE marking

EPNP surgical equipment

Brand name	KIT EPNP
Product code	AJL- KIT-001
Definition	NPDS (non-penetrating deep sclerectomy) Kit.
Description	The EPNP Kit is presented in a rigid plastic blister in which the following references are grouped(): •EPNP-2001Liebermann Blepharo 14mm. • EPNP-2004Mermoud Clamp. •EPNP-2002Double Scleral Marker. • EPNP-2005Curved micro-scissor. •EPNP-2003Mermoud Spatula. • PST-4600A*Sterilisation box (10x16x2 cm).
Sterilisation method	Non-sterile.

*The instruments can be supplied as a set (NPDS Kit) or separately

fred 0 Commentaires

Juin 16 2020

Ferrara Ring Surgical Instruments

Ferrara ring surgical Instruments

For FERRARA RING™ use only (Optical Zone 5.0mm BASE 600μm and 6.0mm BASE 800μm)

Reference	AJL-TKR111*	AJL-TKR110*	AJL-TKR105*	AJL-TKR101*	AJL-TKR102*	AJL-TKR102.01*
Instrument	Kremer Fixation Forceps.	McPherson Modified Short.	Double Sinskey Hook.	Mendez transfer.	Double optical marker 5 mm.	Double optical marker 6 mm.
Indications	Eye fixation during incision.	Ferrara Ring introduction into the tunnel.	Visual axis mark with outer tip. Insertion/extraction of Ferrara Ring from the tunnel.	Axes visualization on the cornea.	Incision and Ferrara Ring track marking.



Reference	DK-5-330-1*	AJL-TKR104*	AJL-TKR103*	AJL-TKR113*
Instrument	Diamond Knife.	Predelaminator.	Suarez Spreader.	Bicalho Guide.
Indications	Incision (square shape).	Incision opening, corneal pocket start.	Corneal pocket execution, tunel start.	Spatulas insertion g uide.

MANUAL PROCEDURE

Reference	AJL-TKR107*	AJL-TKR109*	AJL-TKR106*	AJL-TKR108*	6120A*
Instrument	Spatula left 5 mm. (CCW)	Spatula left 6 mm. (CCW)	Spatula right 5 mm. (CW)	Spatula right 6 mm. (CW)	Ferrara Sterilization PlasticTray
Indications	Also known as Corneal Dissectors. Creates a CW and CCW annular subsurface tunnel for Ferrara placement.				Mantenance and sterilization of the instruments.

PROCEDURE WITH VACUUM PUMP

Reference	KV2000*	7K5000*	KV10478-2*
Instrument	Vacuum pump.	Tubing set.	Suction ring.
Indications	A medical device designed to set the eyeball and facilitate the creation of corneal tunnels during intracorneal ring implantation surgery.	Connector between pump and suction ring. It is necessary for the system to work. The flow is controlled by the vacuum pump, which monitors the pressure.	Port for attachment to a vacuum source. Centers and stabilizes the Corneal Separators onto the cornea during the dissection of the intrastromal tunnels.



Reference	AJLF50L	AJLF60L	AJLF50R	AJLF60R	AT11211*	AJLFT5	AJLFT6*
Instrument	Spatula left 5 mm. (CCW)	Spatula left 6 mm. (CCW)	Spatula right 5 mm. (CW)	Spatula right 6 mm. (CW)	Suction ring aligner	Inspection Gauge, of corneal spatula.
Indications	Also known as Corneal Dissectors. Creates a CW and CCW annular subsurface tunnel for Ferrara placement.				Suction ring aligner with the visual axis work, previously done at the start of the procedure.	Inspects the concentricity and planarity of the Corneal Separator blades.

* The set is common for both 5mm and 6mm optical zones except these items.

fred 0 Commentaires

Juin 16 2020

Ferrara ring

Frera Ring

SPECS

Reference	FERRARA RING™
Brand name	AFR (optical area of 5 mm) and AFR6 (optical area of 6 mm).
Definition	Intrastromal Corneal Implants.
Arc	90°, 120°, 140°, 150°, 160°, 180°, 210°, 320° *Other arc lengths upon request.
Thickness	0.15, 0.20, 0.25, 0.30, 0.35 mm.
Indications	The correct indication of Ferrara Ring implants requires a detailed evaluation of the topographic conditions and pachymetry of the cornea, in addition to a complete visual examination. • Progressive keratoconus. • Keratoconus with intolerance to contact lenses. • Corneal deformity induced by contact lenses (Harstein’s syndrome). • Post-penetrating keratoplasty astigmatism. • Post-Lasik corneal ectasias. • Post-radial keratotomy astigmatism. • Pellucid marginal degeneration.
Product description	The FERRARA RING™ consists of a semicircular segment with an arc of multiple lengths and a fixed triangular section: AFR (0.60 mm base) and AFR6 (0.80 mm base). Single Use Implant. Each segment has an orifice of 0.20 mm at each end to facilitate its implantation.
Material	Polymethyl Methacrylate (PMMA) with natural blue light filter.
Sterilization method	Ethylene Oxide (ETO).
Supply	Individual sterile segment, not pyrogenic.
Shelf-life	4, 5 years

Product with marking

REFERENCE TABLE FOR ORDERS

Optical area	AFR= Optical Ferrara Ring 5 mm
Optical area	AFR6= Optical Ferrara Ring 6 mm
Thickness	0.15 mm, 0.20 mm, 0.25 mm, 0.30 mm, 0.35 mm.
Angle	90°, 100°, 110°, 120°, 130°, 140°, 150°, 160°, 170°, 180°, 190°, 200°, 210°, 320°.

Reference: AFRXXYYY

Reference: AFR6XXYYY

XX= Thickness of the ring
YYY=Angle of the ring

Example

AFR15160:

Optical Ferrara Ring 5 mm
Thickness 0.15 mm
Angle 160

AFR620150:

Optical Ferrara Ring 6 mm
Thickness 0.20 mm
Angle 150°

AJL-ferrara-verde-implants-ophtalmologies-produits-tunisia-freedom

fred 0 Commentaires

Bomba-Vacio-KV2000-AJL-ophtalmologies-cornee-tunisia-freedom-medical

Juin 15 2020

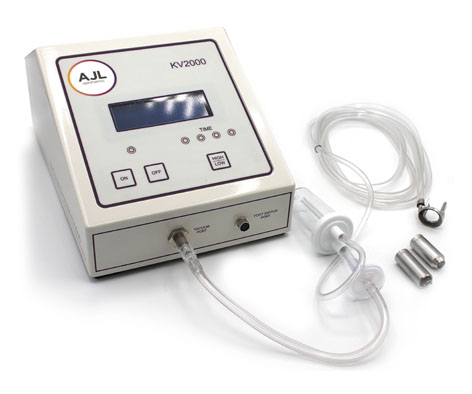

Vacuum pump

bomba-de-vacio-ok-web-implants-ajl-ophtalmologies-tunisia-freedom-medicale

More information

fred 0 Commentaires

nomograma_ajl_web-2-freedom-cornee-AJL-ophtalmologies-tunisia-freedom

Juin 15 2020

AJL Keratoconus Nomogram

KERATOCONUS NOMOGRAM

Keratoconus Nomogram is developed by AJL Ophthalmic, S.A. and helps you out in the necessary calculations when using Ferrara and Intacs segments for the treatment of keratoconus.

fred 0 Commentaires
