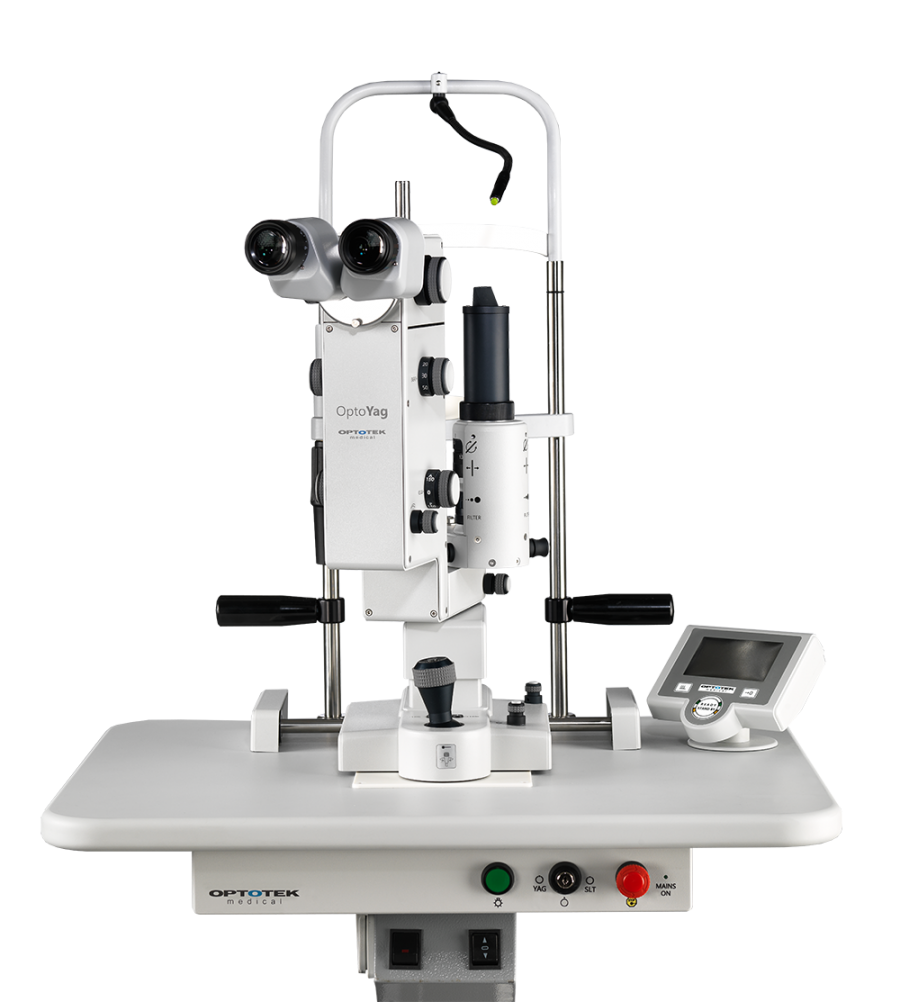

OptoYag M
ADVANTAGES
- short treatment times
- reduced risk of IOL pitting
- greater patient comfort

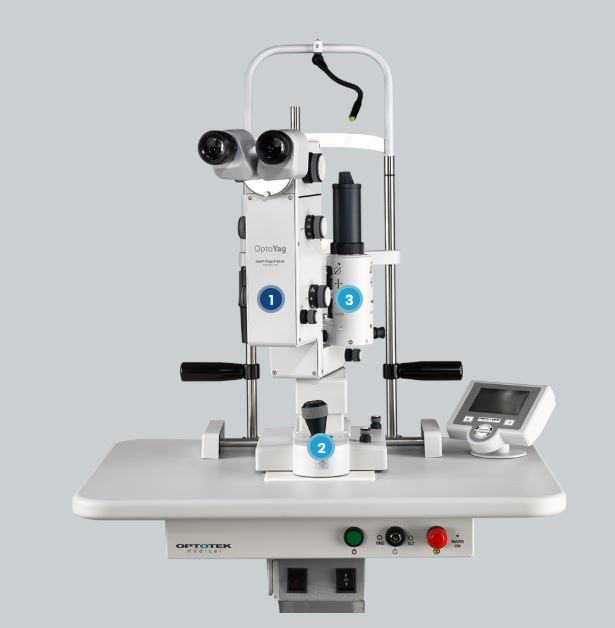

OptoYag is a Photodisruptor for Capsulotomy and Iridotomy treatments. It is a Q-switched Nd:YAG laser emitting short pulses at the wavelength of 1064 nm. The laser is integrated into the e-SlitLight. The OptoYag emits pulses at levels from 0.5 to 10 mJ. A dual red diode aiming beam with continuous power adjustment allows precise focusing of the YAG laser.
Clinical references:
Nd:Yag Capsulotomy for Treating Posterior Capsule Opacification
Other references:
Key features
[fusion_faq filters= »no » featured_image= » » cats_slug= »optoyag-m » exclude_cats= » » orderby= »date » order= »DESC » type= » » boxed_mode= » » border_size= » » border_color= » » background_color= » » hover_color= » » divider_line= » » title_font_size= » » icon_size= » » icon_color= » » icon_boxed_mode= » » icon_box_color= » » icon_alignment= » » toggle_hover_accent_color= »#14437b » hide_on_mobile= »small-visibility,medium-visibility,large-visibility » class= » » id= » » /]
Technical specifications
| Laser Source | Q-switched Nd:YAG |
| Wavelength | 1064 nm |
| Energy | 0,5 to 10 mJ per pulse in 30 steps |
| Spot Size | < 10 μm |
| Cone Angle | 16° |
| Offset | Selectable: 150μm anterior; 0; 150, 300 μm posterior |
| Pulse Rate | Up to 3 Hz |
| Burst Mode | 1, 2 and 3 pulses |
| Pulse Duration | 4 ns (typical) |
| Aiming Beam | Red dual diode; 650 nm; continuously adjustable intensity(635, 670 nm optionally) |
| Laser Trigger | Joystick (footswitch optionally) |
| Cooling System | Air convection |
| Type | e-SlitLight™ |
| Illumination Source | White LED |
| Magnification | 10x, 16x, 25x (6x, 10x, 16x, 25x, 40x optionally) |
| Type | Central mounted |
| Dimensions | 600 x 480 mm |
| YAG Laser Dimensions | 125 x 257 x 68 mm |
| Total System Height | 650 mm |
| Total Net Weight | 21 kg |
| Power Supply | 100 – 240 V, 50 – 60 Hz, 1,1 A MAX |
| Optional Accessories | Motorized lifting mechanism, Footswitch, Elbow support,,Beam splitter with co-observation tube, Warning light,,Magnification changer (5x) |
