Description
Ultra glistening-free. Ultra smooth.
Ultra stable.

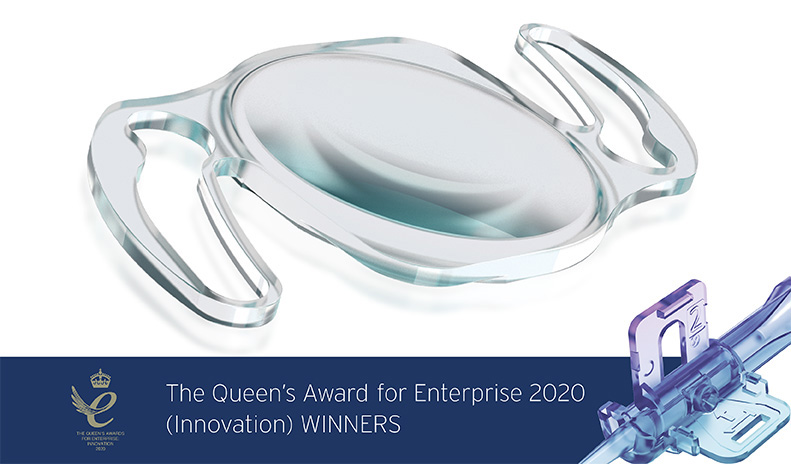

Using our high performance hydrophilic RayOne system as a foundation, RayOne Hydrophobic has been designed so that surgeons can offer patients excellent visual outcomes whilst still being user friendly in the operating room.
RayOne Hydrophobic Aspheric technical spec.
| Model Name | RayOne Hydrophobic Aspheric |
| Model Number | RAO800C |
| Power Range | -10.0 D to +7.0 D (1.0 D increments, inc. plano) +8.0 D to +30.0 D (0.5 D increments) +31.0 D to +32.0 D (1.0 D increments) |
| Delivery System Type | Fully preloaded IOL injection system |
| Incision Size | 2.2 mm |
| Delivery System | |
| I injector Type | Single use, fully preloaded IOL injection system |
| Nozzle Size | 1.65 mm |
| Bevel Angle | 45° |
| Lens Delivery | Single handed plunger |
| Aspheric Monofocal IOL | |
| Material | Single piece hydrophobic acrylic |
| UV Light Transmission | UV absorption 10% cut-off is 385 nm |
| ! Refractive Index | 1.51 |
| ABBE | 43 |
| Overall Diameter | 12.5 mm |
| Optic Diameter | 6 mm |
| Optic Shape | Biconvex (positive powers), Plano, Concave (negative powers) |
| Asphericity | Posterior aspheric surface with aberration-neutral technology |
| Optic Edge Design | 360° enhanced square edge |
| Haptic Angulation | 0°, uniplanar |
| Haptic Style | Cornerstone lens design with Anti-Vaulting Haptic (AVH) technology |
| Estimated Constants for Optical Biometry | ||||||||
| SRK/T | Haigis | HofferQ | Holladay | Holladay II | Barret Universal II | |||
| A-constant | a0 | a1 | a2 | pACD | SF | pACD | LF | DF |
| 118.6 | 1.17 | 0.40 | 0.10 | 5.32 | 1.56 | 5.32 | 1.67 | 0 |
